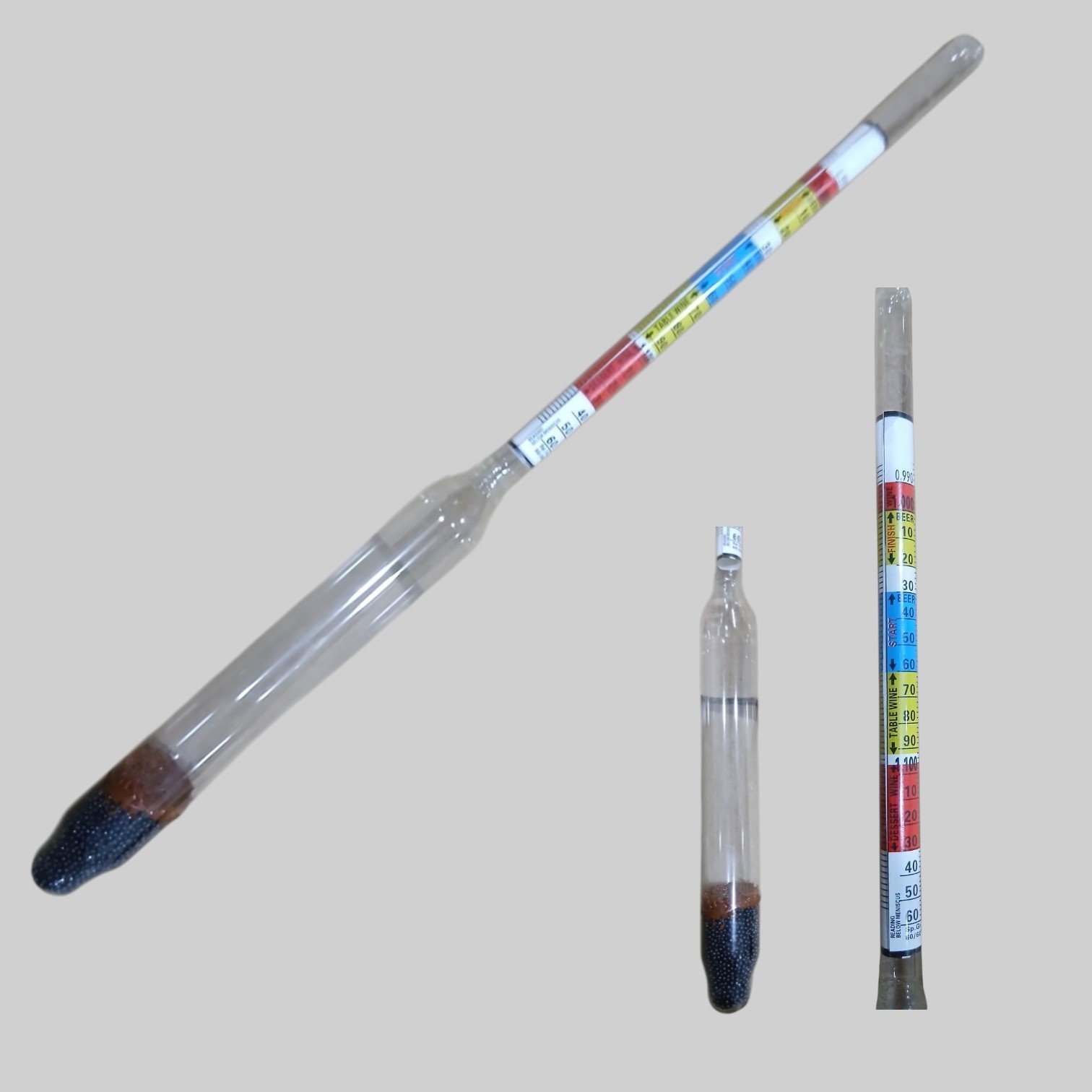

Triple Scale Hydrometer
Specifications
- Type: Glass Triple Scale Hydrometer
- Measurement Scales: Specific Gravity, Brix/Balling,
- Specific Gravity Range: Approximately 0.990–1.160
- Brix Range: Approximately 0–35° Brix
- Potential Alcohol Range: Approximately 0–20%
- Graduations: Typically 0.002–0.005 SG, 0.5–1° Brix and 0.5–1% potential alcohol, depending on model
- Material: Clear laboratory glass
- Length: Approximately 230–285 mm, depending on model
- Calibration Temperature: Commonly 20°C (68°F) or 15.6°C (60°F), depending on model
- Design: Weighted bulb with graduated stem for floating measurement
- Accessories: Protective storage tube/case and temperature correction chart may be included
Key Features
- Three measurements in one instrument
- Measures Specific Gravity
- Measures Brix / sugar concentration
- Indicates Potential Alcohol
- Easy-to-read graduated scales
- No battery or electrical power required
- Lightweight and portable
- Suitable for routine laboratory and beverage testing
- Glass construction for clear visibility
Applications
- Sugar concentration testing
- Fruit juice and beverage analysis
- Wine and fermentation monitoring
- Brewing applications
- Food and beverage quality control
- Educational laboratory experiments
- Checking specific gravity and potential alcohol of fermentation samples
Safety & Handling
- Handle carefully because the glass body is fragile.
- Use a suitable hydrometer jar or tall measuring cylinder.
- Ensure the hydrometer floats freely without touching the sides or bottom.
- Take readings at the specified calibration temperature or apply temperature correction.
- Clean and dry the hydrometer after use and store it in its protective case.
